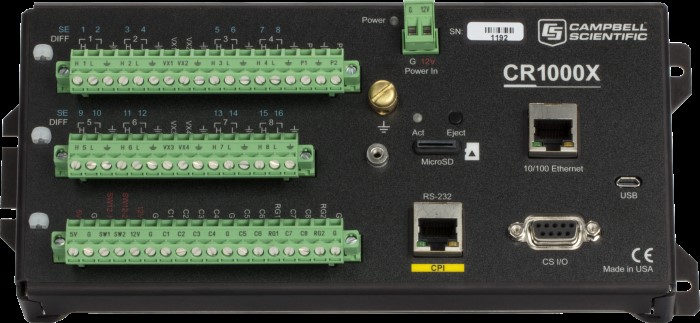

Measurement and Control Datalogger CR1000X

Product code : 1684139927

The CR1000X is our flagship data logger that provides measurement and control for a wide variety of applications. Its reliability and ruggedness make it an excellent choice for remote environmental applications, including weather stations, mesonet systems, wind profiling, air quality monitoring, hydrological systems, water quality monitoring, and hydrometeorological stations. The CR1000X is a low-powered device that measures sensors, drives direct communication and telecommunications, analyzes data, controls external devices, and stores data and programs in onboard, nonvolatile storage. The electronics are RF-shielded by a unique sealed, stainless-steel canister. A battery-backed clock assures accurate timekeeping. The onboard, BASIC-like programming language, common to all contemporary Campbell Scientific data loggers, supports data processing and analysis routines.

0đ
Quantity:
More information:
  • Nhà Sản Xuât
  • CAMPBELL SCIENTIFIC, INC.

    Specifications

    Operating Temperature Range
    • -40° to +70°C (standard)
    • -55° to +85°C (extended)
    • Non-condensing environment
    Maximum Scan Rate 1000 Hz
    Case Material Anodized aluminum
    Analog Inputs 16 single-ended or 8 differential (individually configured). Two analog inputs can measure 4 to 20 mA or 0 to 20 mA natively. Four analog inputs can provide pulse/digital I/O functions.
    Pulse Counters 10 (P1 to P2 and C1 to C8)
    Voltage Excitation Terminals 4 (VX1 to VX4)
    Maximum Source/Sink Current
    • ±40 mA (voltage excitation)
    • 50 mA (switched regulated)
    Communications Ports
    • Ethernet
    • USB Micro B
    • CS I/O
    • RS-232
    • RS-422
    • CPI
    • RS-485
    Data Storage Ports microSD
    Switched 12 Volt 2 terminals
    Digital I/O 8 terminals (C1 to C8) configurable for digital input and output. Includes status high/low, pulse width modulation, external interrupt, edge timing, switch closure pulse counting, high-frequency pulse counting, UART, RS-232, RS-485, SDM, SDI-12, I2C, and SPI function. Terminals are configurable in pairs for 5 V or 3.3 V logic for some functions.
    Input Limits ±5 V
    Analog Voltage Accuracy
    • Accuracy specifications do not include sensor or measurement noise.
    • ±(0.04% of measurement + offset) at 0° to 40°C
    • ±(0.06% of measurement + offset) at -40° to +70°C
    • ±(0.08% of measurement + offset) at -55° to +85°C (extended temperature range)
    ADC 24-bit
    Power Requirements 10 to 18 Vdc input
    Real-Time Clock Accuracy ±3 min. per year (Optional GPS correction to ±10 µs)
    Internet Protocols Ethernet, PPP, RNDIS, ICMP/Ping, Auto-IP (APIPA), IPv4, IPv6, UDP, TCP, TLS (v1.2), DNS, DHCP, SLAAC, Telnet, HTTP(S), SFTP, FTP(S), POP3/TLS, NTP, SMTP/TLS, SNMPv3, CS I/O IP, MQTT
    Communication Protocols CPI, PakBus, SDM, SDI-12, Modbus, TCP, DNP3, UDP, NTCIP, NMEA 0183, I2C, SPI, and others
    Battery-backed SRAM for CPU Usage & Final Storage 4 MB
    Data Storage 4 MB SRAM + 72 MB flash (Storage expansion of up to 16 GB with removable microSD flash memory card.)
    Idle Current Drain, Average < 1 mA (@ 12 Vdc)
    Active Current Drain, Average
    • 1 mA (1 Hz scan @ 12 Vdc)
    • 55 mA (20 Hz scan @ 12 Vdc)
    Dimensions 23.8 x 10.1 x 6.2 cm (9.4 x 4.0 x 2.4 in.)
    Additional clearance required for cables and leads.
    Weight 0.86 kg (1.9 lb)
