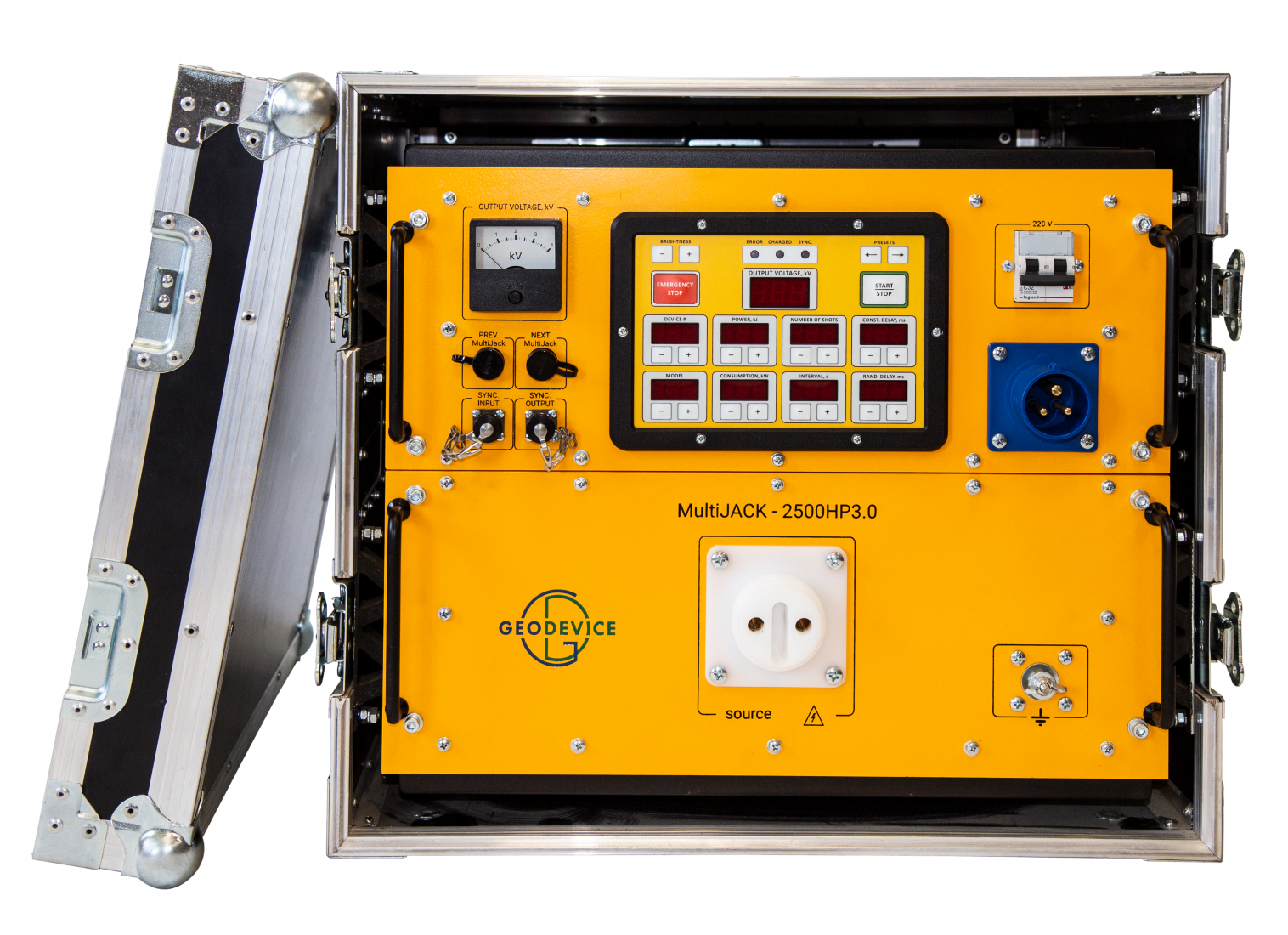

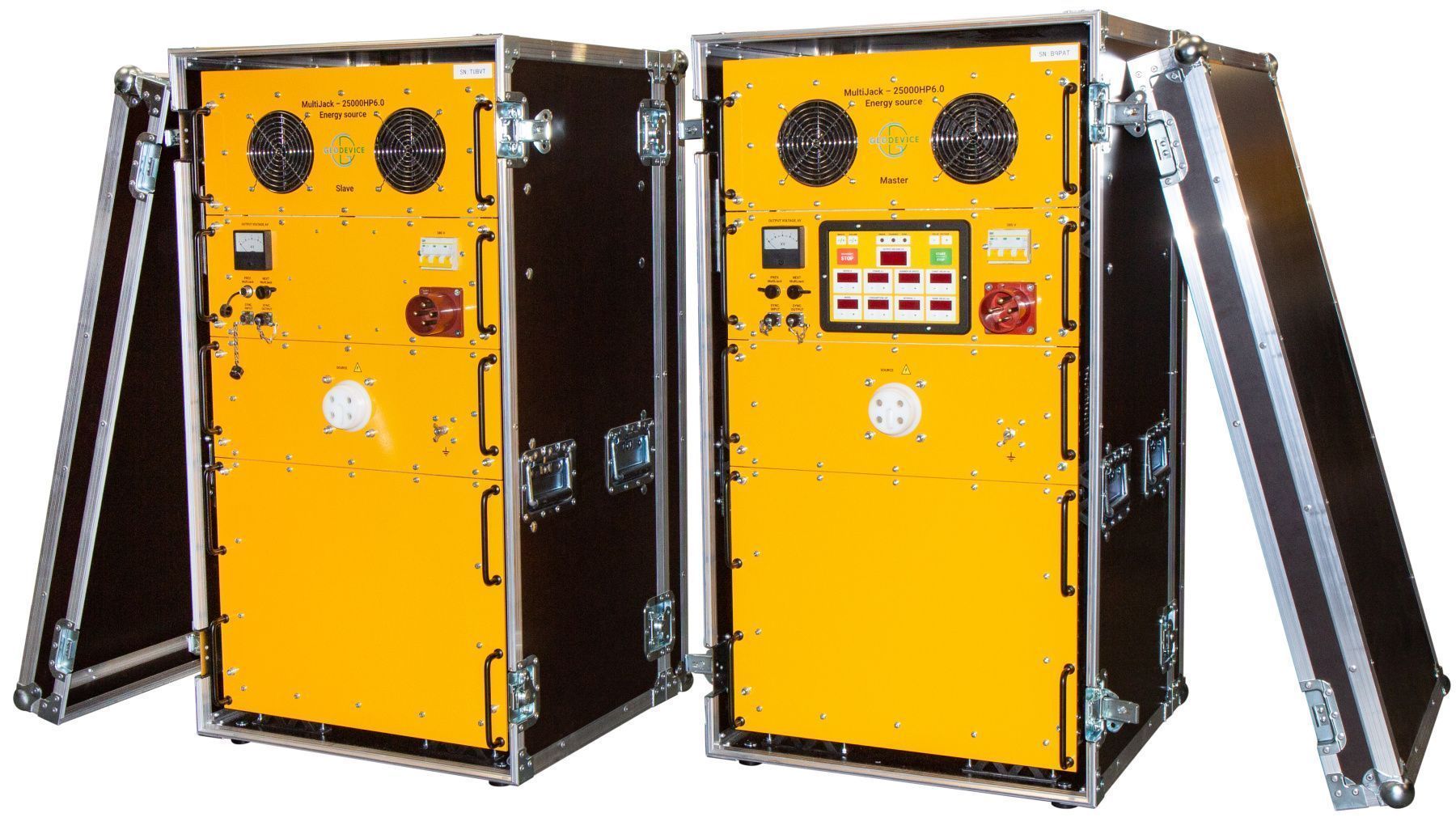

Energy sources MultiJack

Product code : 1660537637

MultiJack energy source is designed to supply operations of sparker and boomer sound sources that are typically used for high resolution (HR), ultra-high-resolution (UHR) marine seismic surveys and VSP. MultiJack is a unique energy source with the fastest charging rate available on the market, which results in possibility to acquire marine seismic profiles with the highest possible trace density and lateral resolution, correspondingly.

0đ
Quantity:

    Main features:

    • High charge rate
    • Flip-flop, simultaneous source, code sequences and multilevel sources support
    • High power
    Easy handling

    MultiJackPad
    Purpose of use remote control of MultiJack
    Maximum length of communication line      100 m
    Overall dimensions 24 × 19.8 × 10.9 sm
    Weight 1.5 kg

    Specification:
    MultiJack model 500HP1.5 1250HP1.5 2500HP3.0 5000HP6.0 10000HP12 25000HP12 50000HP12
    Maximum pulse voltage 4 kV (6 kV (option))
    Type of charger pulse charger
    Trigger mode   external/repetitive/manual
    Support of survey technologies conventional, Flip-flop, simultaneous source, coded and multi-level source
    Operating energy 50‑500 J 50‑1 250 J 50‑2 500 J 50‑5 000 J 50‑10 000 J 50‑25 000 J 50‑50 000 J
    Charging rate   1 500 J/s 1 500 J/s 3 000 J/s 6 000 J/s 12 000 J/s 12 000 J/s 12 000 J/s
    Minimum period of operation at the minimum pulse energy    0.13 s 0.13 s 0.26 s 0.15 s 0.1 s 0.1 s 0.1 s
    Minimum period of operation at the maximum pulse energy 0.4 s 0.9 s 0.9 s 0.9 s 0.9 s 2.1 s 4.2 s
    Minimum distance between shot points on maximum pulse energy and vessel speed is 3-5 knots 0.6-1 m 1.4-2.3 m 1.4-2.3 m 1.4-2.3 m 1.4-2.3 m 3.3-5.5 m 6.5-10.8 m
    Power mains 110 or 220 V, 50 Hz 380 V, 50 Hz
    Maximum power consumption 1/2/3 kW 1/2/3 kW 1/2/3/4/5/6 kW 12 kW 12/24 kW
    Overall dimensions 54×41×27 cm     58×56×50 cm         58×59×69 cm     depends of customization
    Weight 20 kg 26 kg 74 kg 99 kg depends of customization
