Product code : 1667895180

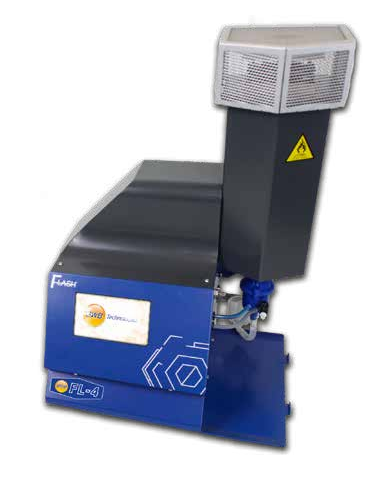

The BWB Flash is the first and only fully configurable up to four channel flame photometer that detects and displays all calibrated ions at the same time.The first simultaneous Flame Photometer with built in compressor and configurable element analysis to your requirements.
Specifications:
Sample rate
2.5 - 4ml/min
Tubing materials
Silicone and Tygon®
Required desk space for instrument
101cm* (H) x 45cm (W) x 35cm (D)
*For Safety reasons the Flame photometer requires 1m of unobstructed space above to allow dissipation of heat from the chimney.
Instrument size
Flash Flame Photometer
51cm (H) x 33cm (W) x 35cm (D) (20in x 13in x 14in)
Shipping
65cm (H) x 49cm (W) x 43cm (D) (25in x 19in x 17in)
Weight
BWB Flash – 10kg (22.1lbs)
Shipping – 18kg (39.7 lbs)*
*subject to vary based on accessories included
Optimal range
Single point calibration
Na 0.1 – 60ppm
K 0.05 – 100ppm
Li 0.05 – 50ppm
Ca 1.0 – 100ppm
Multi Point Calibration (with dilution)
Na 0.1 – 1000ppm
K 0.05 – 1000ppm
Li 0.05 – 1000ppm
Ca 1.0 – 1000ppm
Reproducibility
<1% Coefficient of variability for 20 consecutive samples over ten minutes at concentrations of 100ppm or less. (After instrument stabilisation).
Specificity
Na/K/Li = <1% to each other when equal in concentration at <100ppm
Limit of detection (LOD) and limit of quantification (LOQ)
LOD LOQ
Na – 0.03ppm Na – 0.1ppm
K – 0.02ppm K – 0.05ppm
Li – 0.02ppm Li – 0.05ppm
Ca – 0.3ppm Ca – 1ppm
Time to stability
Less than 15 seconds after sample is introduced into the flame
Ions measured
Simultaneous measurement of model specific elements
Interfaces
USB connectivity for supplied PC software
.csv and .pdf generated reports and files via FP-PC software
Recommended minimum warm up time based on ambient temperature 21ºC – 25 minutes
Power requirements
100V – 250V AC at 50 or 60Hz
automatically selecting
Fuel requirement*
Propane, Butane or Natural Gas regulated to 19Bar. Flow rate of 0.4l/min
*we recommend either Propane or Butane for optimum results
Readout
5” colour capacitive touch screen display
