AWD-40PS

Product code : 1592557403

AWD-40PS is a variant of seismic source of the “weight drop” type. The hammer is equipped with an inclined platform, allowing it to be installed at an angle of 45 degrees, and a special stop, adding stability in an upright position, what allows to perform survey on shear waves.

Quantity:

    The source AWD-40PS is mounted on a compact lightweight frame equipped with reliable wheel blocks. The delivery package of the source includes one hammer: 20, 33 or 40 kg. Hammers of another weights can be supplied additionally. The design of device allows hammer’s fast replacing in the field. The source can be used on a rugged terrain. The total weight of the source without battery pack is less than 120 kg. The energy of a single impact reaches 1000 J.

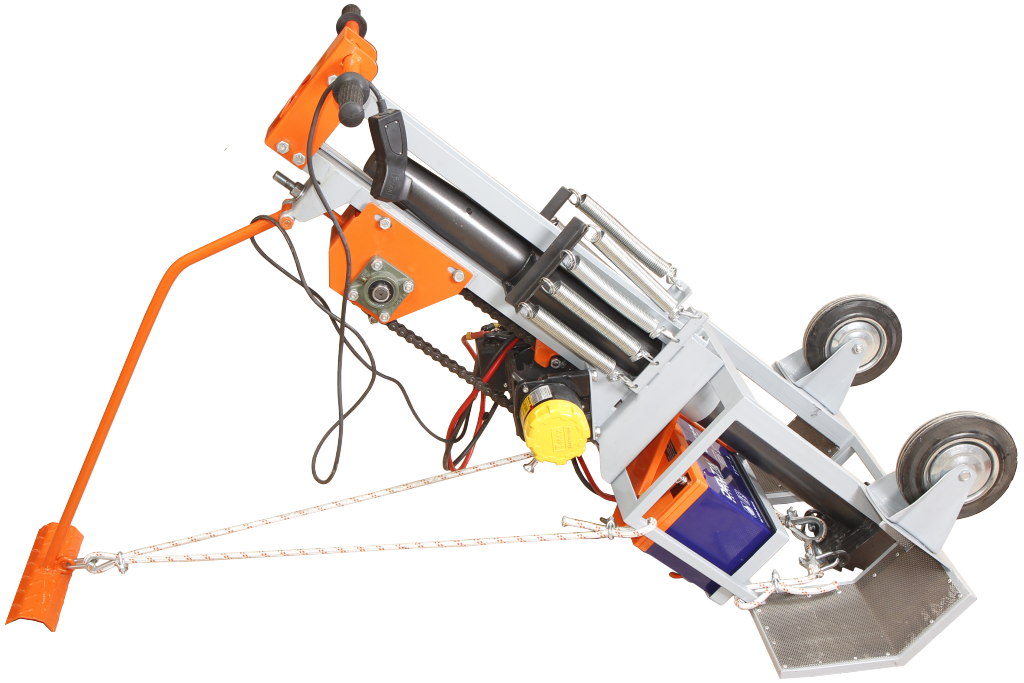

    AWD-40PS accelerated weight drop seismic source of P- and S- waves
    In-field operation of AWD-40PS accelerated weight drop seismic source
    AWD-40PS accelerated weight drop seismic source
    AWD-40PS seismic source
    Land seismic using AWD-40PS seismic source
    AWD-40PS - seismic source of the “weight drop” type
    AWD-40PS accelerated weight drop seismic source
    AWD-40PS accelerated weight drop seismic source of P- and S- waves
    Land seismic using AWD-40PS accelerated weight drop seismic source

    The source can be mounted on a trailer, trunk of a pickup, a four-wheeler or a compact wheel pair (tow bar — four-square).

    The set includes:
    • Source AWD-40PS
    • Wired control console
    • Technical manual
    Can be acquired additionally:
    • Additional hammer
    • Sealed (gel) battery 90 A*h
    • Automatic battery charger
    • Trigger switch
    • Titanium alloy plate for hammering

    Type of waves Pressure and Shear
    Minimum response time 3 s
    Weight (with additional hammer and battery) < 120 kg
    The energy of a single impact 1000 J
    Weight of additional hammer 20/33/40 kg
    Frame material Steel
